The Chromium ProjectsでUSB-C to HDMI/DisplayPortアダプタの図面とファームウェアが公開されたとHacker Newsで話題になっています。詳細は以下から。
![Chromium-Projects-USB-C-to-HDMI-Hero](http://livedoor.blogimg.jp/applechinfo/imgs/1/c/1c74726d-s.jpg)
公開されたデータはGoogleのChromium OSのオープンソースプロジェクトThe Chromium Projectsで公開され、これは3月11日に発表されたGoogleの新しいChromebook Pixel(2015)がUSB-C(USB 3.0相当のUSB 3.1 Gen1)経由でHIDM / DisplayPortに対応するため公開されたもようで、

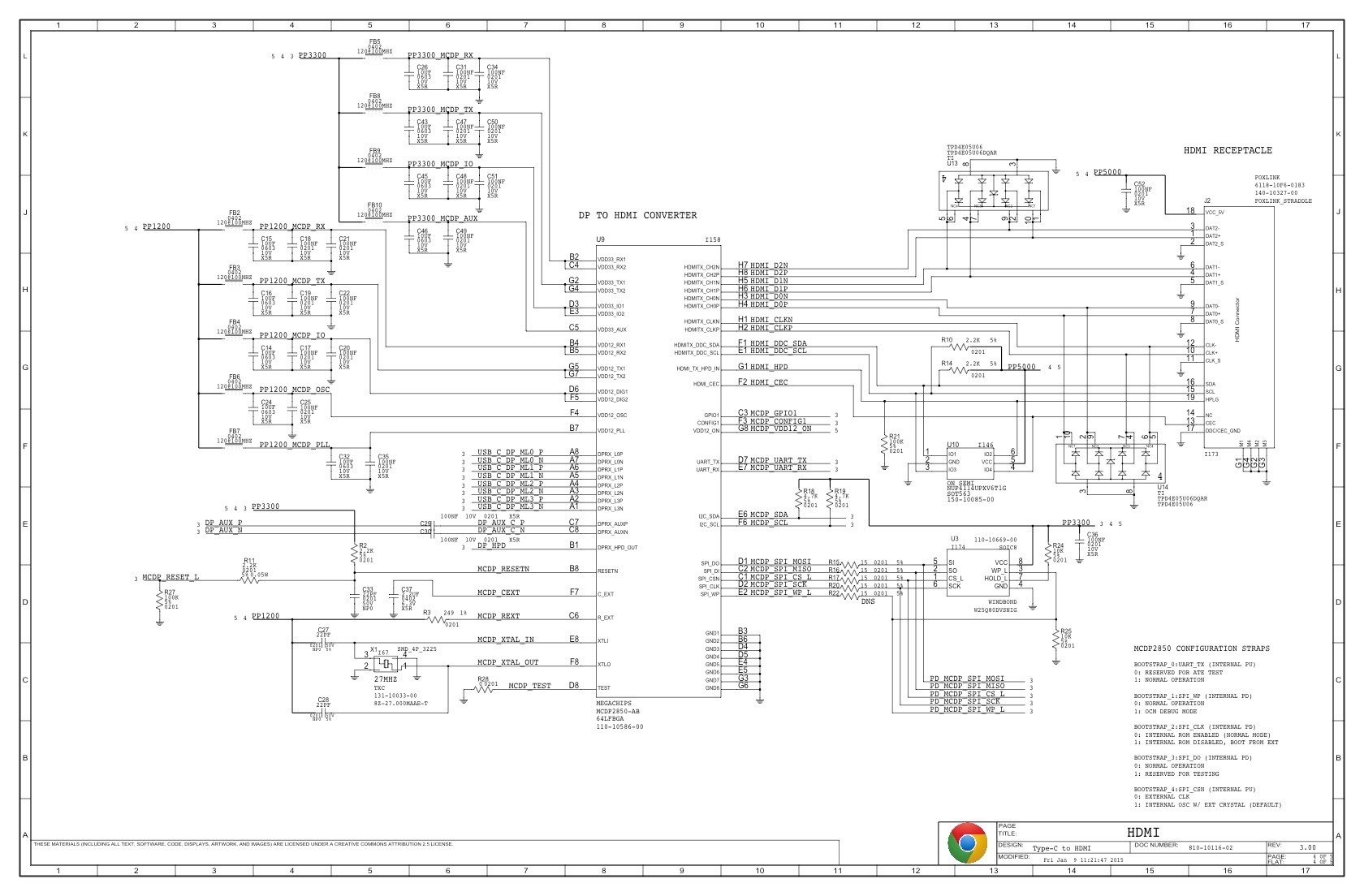

Appendixには回路図も載っているので、興味のある方は関連リンクからどうぞ。

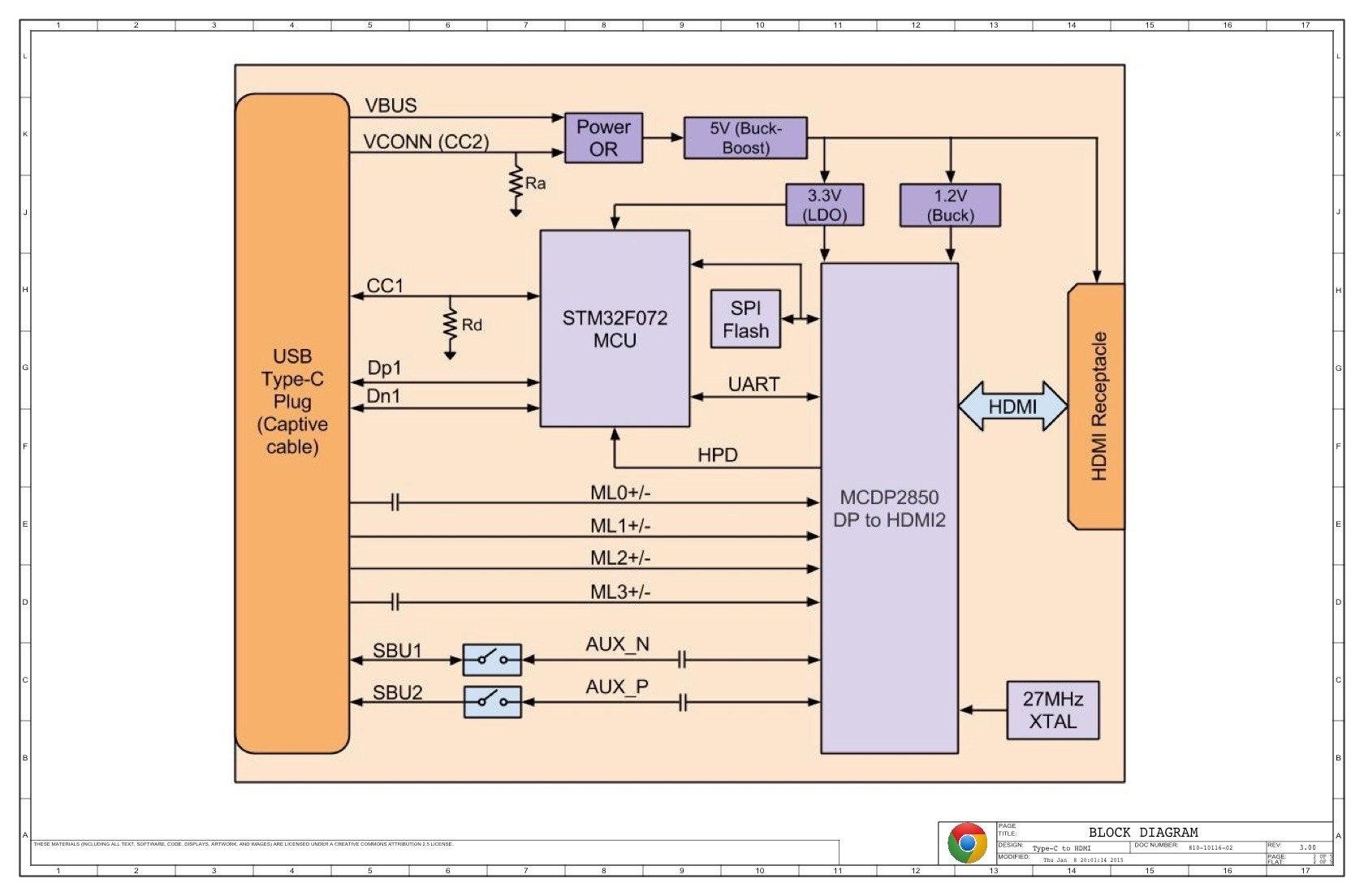

![USB-C-to-HDMI-Block-Diagram](http://livedoor.blogimg.jp/applechinfo/imgs/0/8/08709d60-s.jpg)
Hardware Capabilities
This adapter is an implementation of a USB Type-C DFP_D to HDMI Protocol Converter. It follows the requirements of section 4.3.1 of the VESA DisplayPort Alt Mode for USB Type-C Standard. In the VESA standard, refer to Figure 4-13: Scenario 3a.
It provides the following features:
・DisplayPort protocol conversion to support HDMI
・automatic enabling of video out
・video output with resolutions of up to 4K @ 60 Hz (depending on system and monitor capabilities)
関連リンク:
・Open source USB Type-C to HDMI Adapter – Hacker News
・USB Type-C to DP Adapter – The Chromium Projects
・USB Type-C to HDMI Adapter– The Chromium Projects
